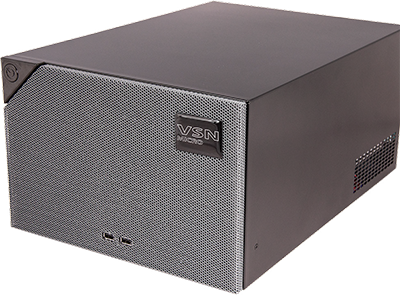

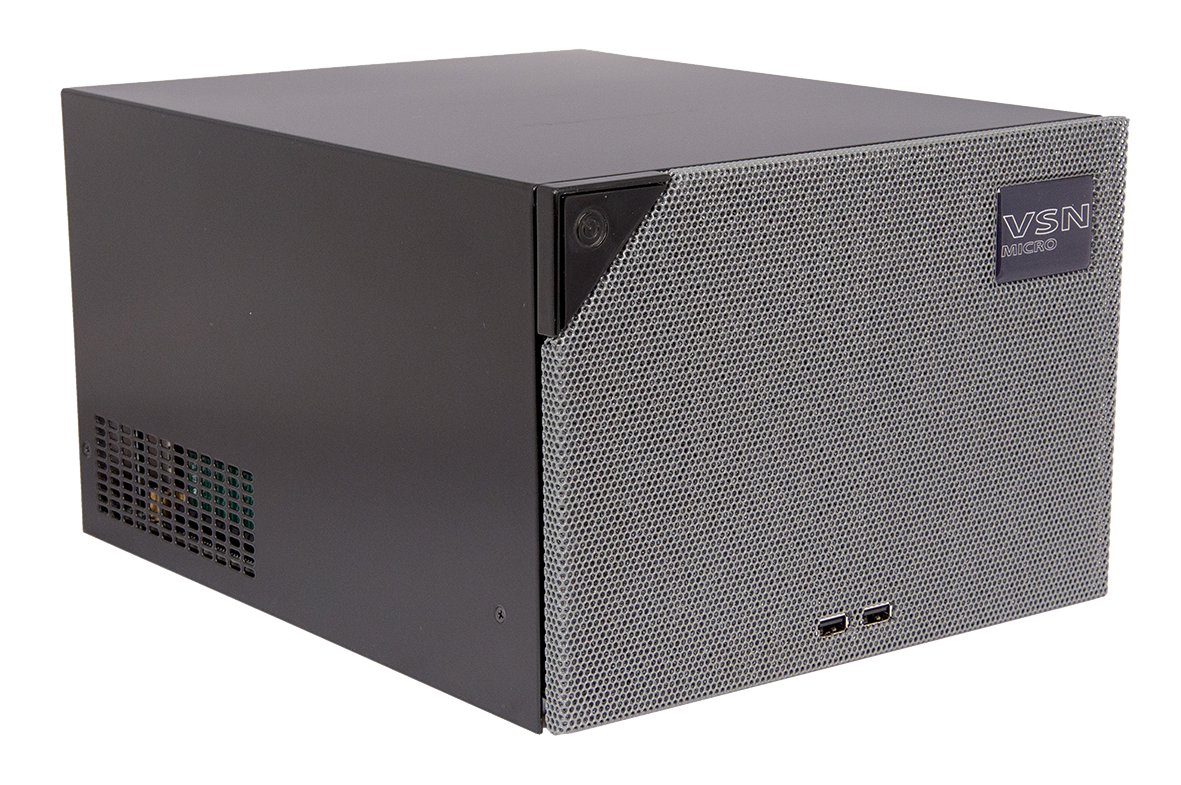

VSNMicro 600

The VSNMicro 600 platform is fully customisable with options available for different Intel processors, hard drive sizes and specifications, memory configurations and software choices.

The system has a small footprint and has been designed to be very quiet for deployment in areas that would not support a standard sized wall controller chassis.

КОНТАКТНАЯ ИНФОРМАЦИЯ

  • Готово тел. +375 (29) 627 38 12
  • Готово e-mail: info@ddrb.by

Описание

Small Footprint, Big Performance

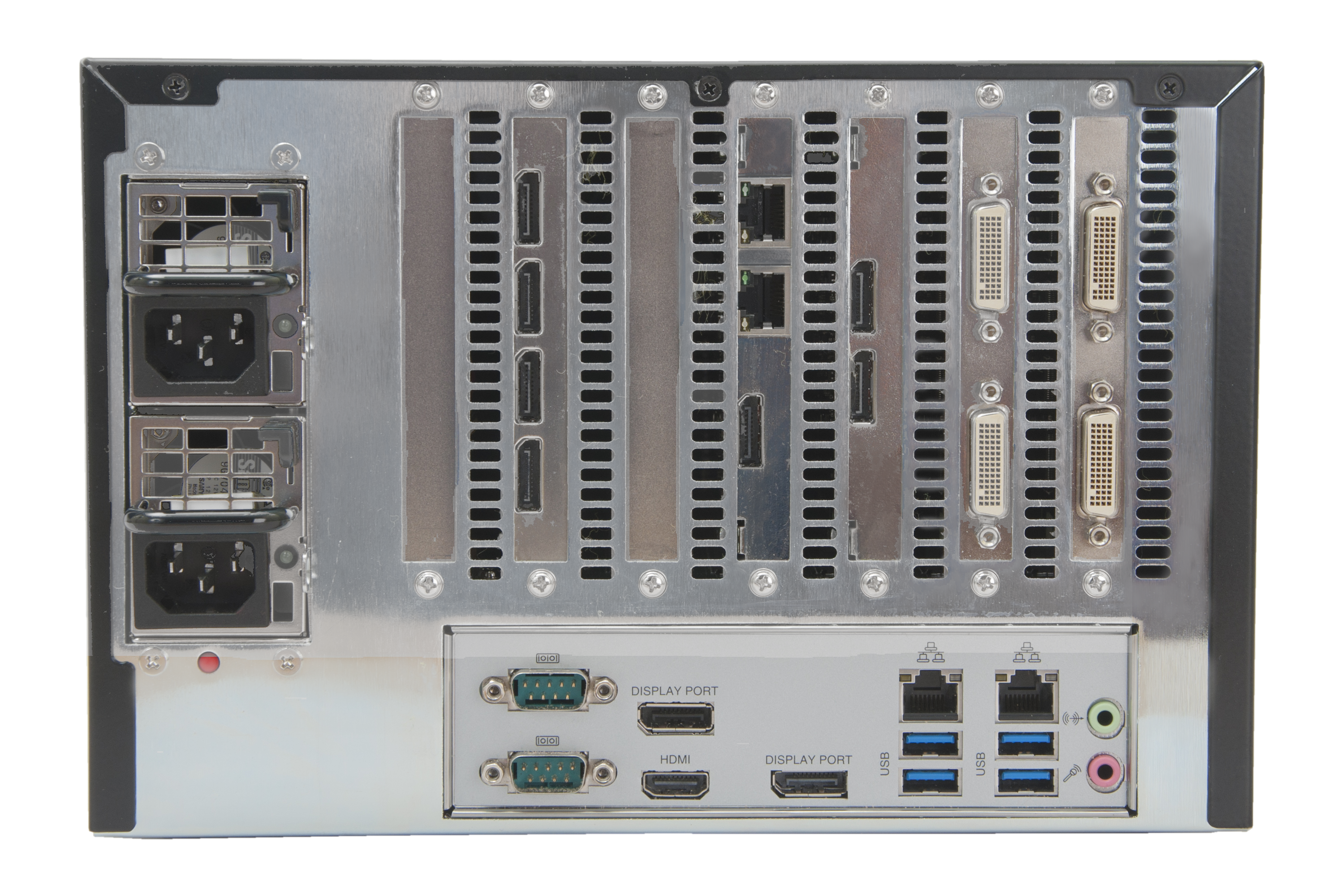

The VSNMicro 600 platform comprises a high-performance motherboard, connected to Datapath’s Express6 PCIe backplane. This backplane contains six half-length PCIe slots for use with Datapath’s range of cards.

Extra Prote

Available with a range of options including a high-performance industrial grade motherboard, Intel processors, DDR4, memory and ATX or RSPU power supplies the VSNMicro 600 is designed to pack much of the same punch as the larger VSN systems.

Considerable engineering expertise has been applied to ensure the system has a smaller footprint and has been designed to ensure quiet performance, making it ideal for installations where space and sound is a premium, such as outside the server room and in more public areas.

Customisable

Compatible with Datapath’s portfolio of Vision capture, Image graphics and ActiveSQX IP decoding cards, customers can build systems that include a large number of video inputs and IP streams that can quickly and easily be delivered to a large, multi-screen video wall.

Ultra-Reliable

Datapath’s VSN video wall controllers have been designed for use in demanding control room environments. Each component has been rigorously tested to ensure high levels of performance and reliability.

For added peace of mind, systems can be pre-installed with Wall Monitor software.

Wall Monitor is an application that warns operators if a system begins to function outside of normal parameters. Alarms can be set to indicate changes in voltage and temperature.

Use with Aetria for Integrated Control Rooms

Aetria is Datapath’s integrated control room solution for the design, management and operation of control rooms of any size.

With Aetria, System Integrators have the freedom to design and deploy the right solution by following a structured, integrated process. Configuration of all connectivity to workstations, video walls, sources, layouts, and templates are managed and operated from a single interface. Meaning users can focus on their core objectives, rather than how to make the technology work.

Aetria has five distinct components:

  • Aetria Designer
  • Aetria Command Centre
  • Aetria Workstation
  • Aetria Wall Control
  • Aetria Network Manager

Compatible with WallControl 10 for Standalone Video Walls of any Scale

WallControl 10 allows users to quickly and easily place and control output sources such as IP feeds, video captures and local applications anywhere on a video wall. These sources can be controlled simply when the most elaborate and complex wall scenarios are required.

Common arrangements can be saved as layouts for recall at any time and any section of the wall can contain carousels of videos playing one after the other at definable intervals. Administrators of WallControl 10 can configure a single system to drive multiple walls. Each of these walls can be assigned several different user roles, and each user role can allow different access to sources, local videos, layouts and templates. *

Now With DDCT

All of Datapath’s award-winning video wall controllers are now supplied with the Display Driver Configuration Tool (DCCT) software pre-installed. The wizard allows users to easily configure video walls and get started in minutes.

Specification Of The VSNMicro 600 Wall Controller:

Motherboard Industrial motherboard, 3 x DisplayPort control screen
Outputs: 4 x USB 3.0 ports, 4 x USB 2.0 ports
Processor options Standard: Intel Core i5 — 6M Cache, up to 3.6 GHz
Optional upgrade: Intel Core i7 — 8M Cache, up to 4 GHz
Memory options Standard: 16GB Dual Channel DDR4
Ethernet 2 x Intel Gigabit Ethernet port
Power supply ATX 500 watts 100-240v
RPSU 500 watts 100-240v
Backplane Datapath Express6: Six PCIe Gen3 slots x8 offering up to 8 GB of bi-directional data transfer
Hard drive options Standard: 240 GB SSD
Optional upgrade: 480 GB SSD
Customer may upgrade to dual drives with RAID. Please confirm at time of order
Operating system
Windows 10 LTSC

Windows Server 2022 (Optional. Contact Datapath Sales for more information)
Operating temperature
0 to 35 °C (32 to 95 °F)
Storage temperature -20 to 70 °C (-4 to 158 °F)
Relative humidity 5% to 90% non-condensing
Length
380mm
Height 176mm
Width
265mm
Weight 10 — 15kg (shipped 15 — 20kg)
Compliance FCC / CE / RoHS
