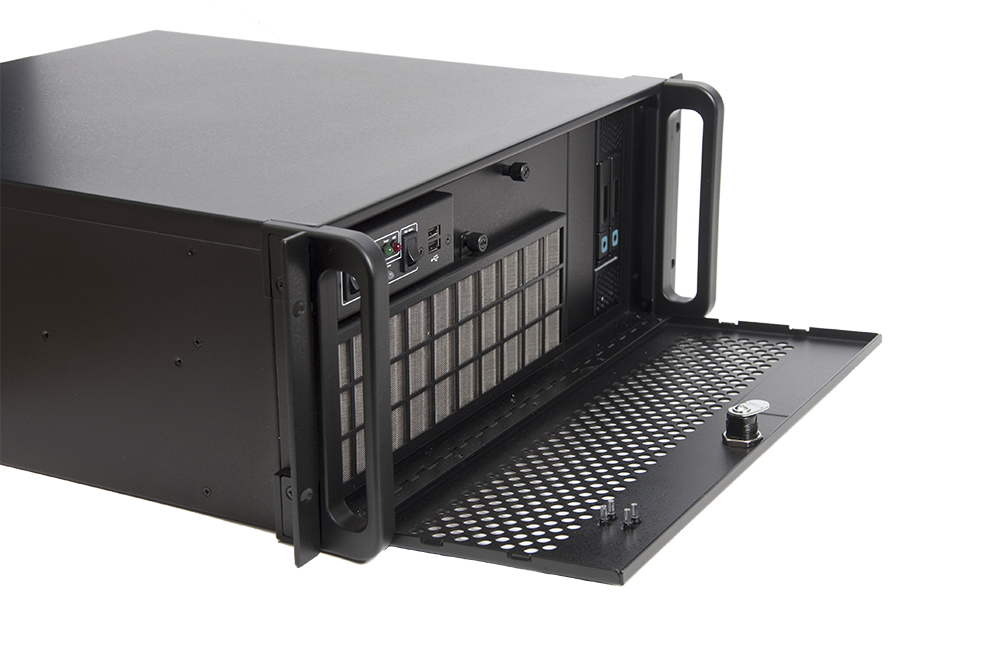

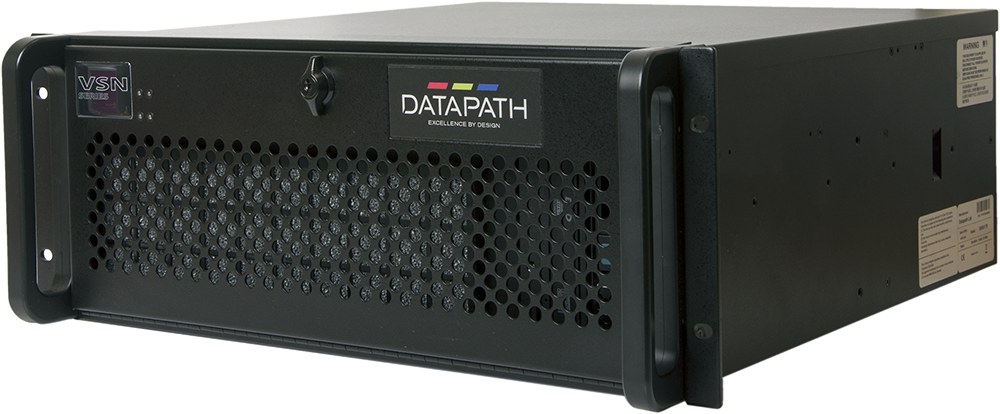

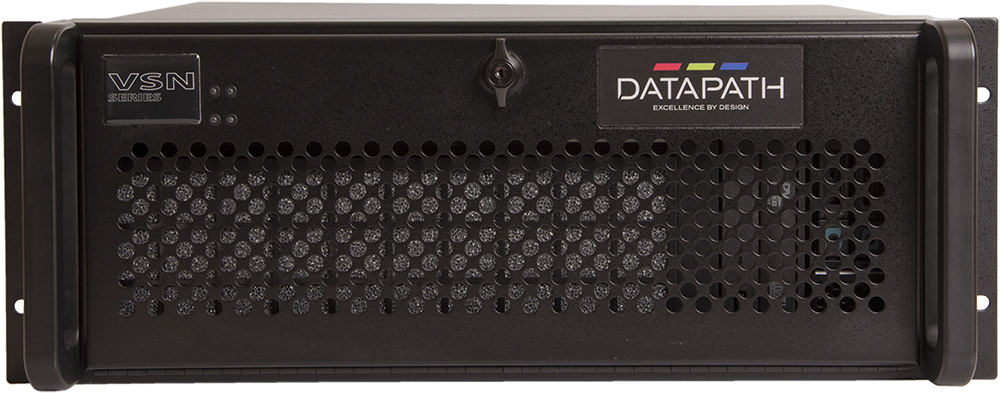

VSN400N

The Datapath VSN400N, a video wall controller that has been designed for video wall and multi-screen display installations that require a balanced number of video captures and video outputs.

The VSN400N has been developed and optimised to operate with the latest generation of our world leading PCI Express graphics and video capture cards providing flexible solutions throughout the professional AV industry.

КОНТАКТНАЯ ИНФОРМАЦИЯ

  • Готово тел. +375 (29) 627 38 12
  • Готово e-mail: info@ddrb.by

Описание

Flexible Video Wall Control

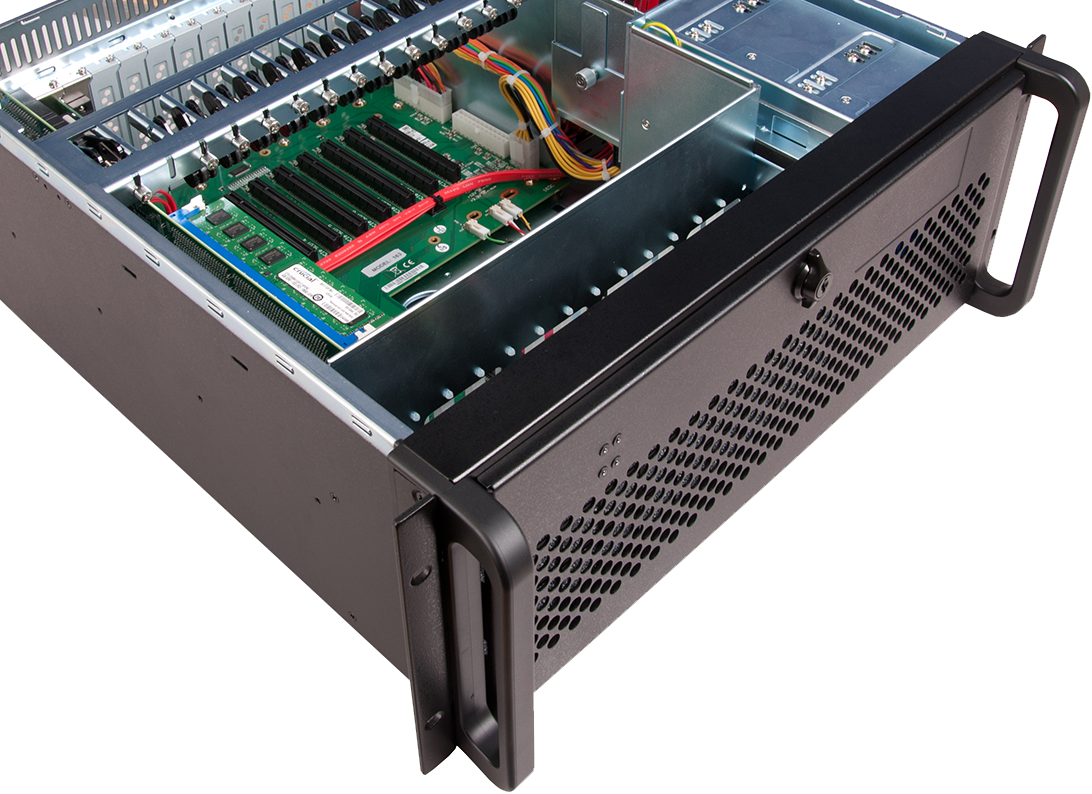

The VSN400N uses a COTS motherboard to provide flexibility and suitability for the smaller, more compact, video wall project. It comes complete with four high-performance PCI Express Gen3 expansion slots. Each x16 mechanical slot has been configured for x8 electrical performance giving up to 8GB/s bi-directional bandwidth.

Compatible with all of the Datapath portfolio of Vision capture cards and Image graphics cards, the VSN400N can provide a wide variety of HD and 4K inputs and outputs including SQX IP streams. When used in conjunction with Datapath’s range of expansion chassis, the VSN400N is able to deliver up to 64 HD outputs and high volumes of captured video and decoded IP media.

The VSN400N is provided in a standard configuration with upgrade options available for processor, memory, storage and power supply.

Multi-Application Chassis

The VSN400N has been designed for small to medium sized video walls and is ideal for applications such as:

Traffic Management Hubs
Operation Centres
Security Suites
Utility Services Operations
Process Control Service

Use with Aetria for Integrated Control Rooms

Aetria is Datapath’s integrated control room solution for the design, management and operation of control rooms of any size.

With Aetria, System Integrators have the freedom to design and deploy the right solution by following a structured, integrated process. Configuration of all connectivity to workstations, video walls, sources, layouts, and templates are managed and operated from a single interface. Meaning users can focus on their core objectives, rather than how to make the technology work.

Aetria has five distinct components:

  • Aetria Designer
  • Aetria Command Centre
  • Aetria Workstation
  • Aetria Wall Control
  • Aetria Network Manager

Compatible with WallControl 10 for Standalone Video Walls of any Scale

WallControl 10 allows users to quickly and easily place and control output sources such as IP feeds, video captures and local applications anywhere on a video wall. These sources can be controlled simply when the most elaborate and complex wall scenarios are required.

Common arrangements can be saved as layouts for recall at any time and any section of the wall can contain carousels of videos playing one after the other at definable intervals. Administrators of WallControl 10 can configure a single system to drive multiple walls. Each of these walls can be assigned several different user roles, and each user role can allow different access to sources, local videos, layouts and templates. *

Now With DDCT

All of Datapath’s award-winning video wall controllers are now supplied with the Display Driver Configuration Tool (DCCT) software pre-installed. The wizard allows users to easily configure video walls and get started in minutes.

VSN400N Wall Controller Specification

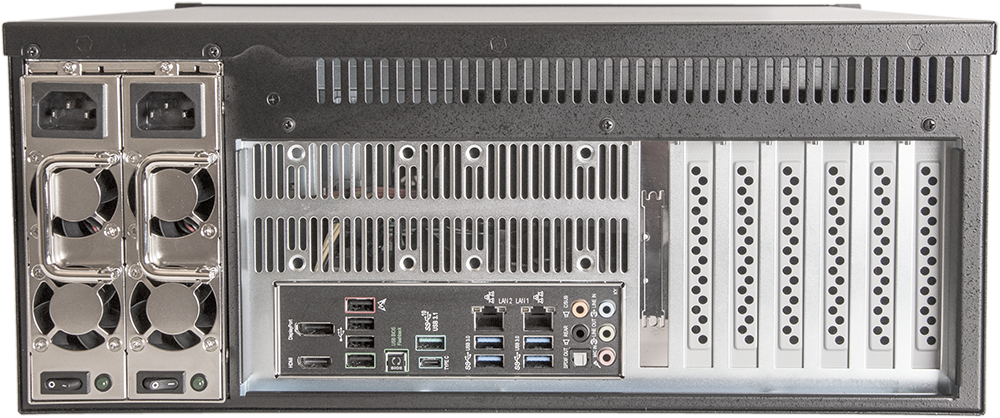

Motherboard

ATX motherboard with:

  • HDMI & DisplayPort outputs for a control screen
  • Expansion Slots: 4x PCIe x8 Gen3
  • USB Connectivity:
    • 2 x USB 2.0 (Front Panel)
    • 2 x USB Type A 3.1 Gen 1
    • 3 x USB Type A 3.1 Gen 2
    • 1 x USB Type C 3.1 Gen 2
  • Ethernet Ports
    • 1 x 1Gb
    • 1 x 10Gb
Processor options Standard: Intel Core i5 Optional upgrade: Intel Core i7 & Intel Core i9
Memory options Standard: 32GB Optional upgrade: 64GB/128GB
Disk Storage Standard: 2 x 240GB SSD (RAID configured) Optional upgrade: 2 x 480GB SSD (RAID configured)
Operating System Windows 10 LTSC

Windows Server 2022 (Optional. Contact Datapath Sales for more information)
Power supply options Standard: 500w ATX Optional upgrade: 600w RPSU
Dimensions 507.6mm (including handles) x 482.6mm x 177mm (l x w x h)
Weight 19 — 25kg (shipped 30 — 33kg)
