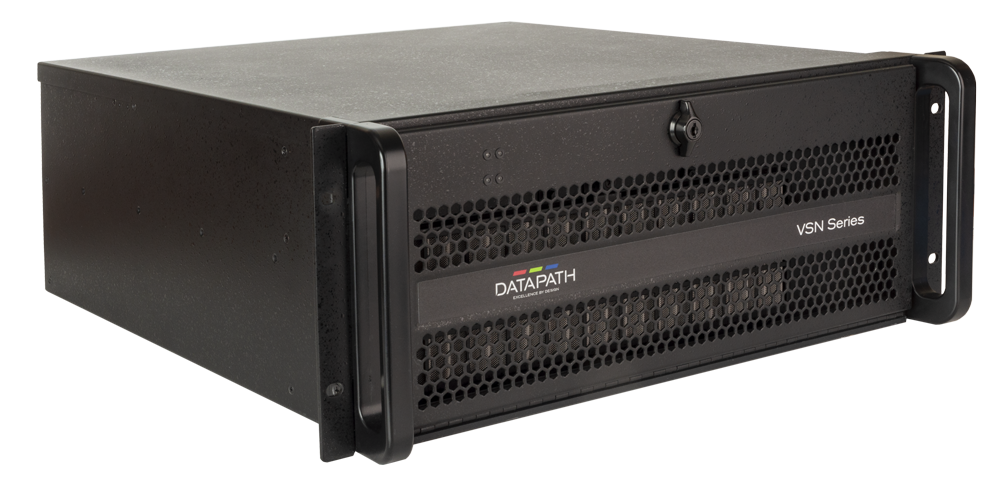

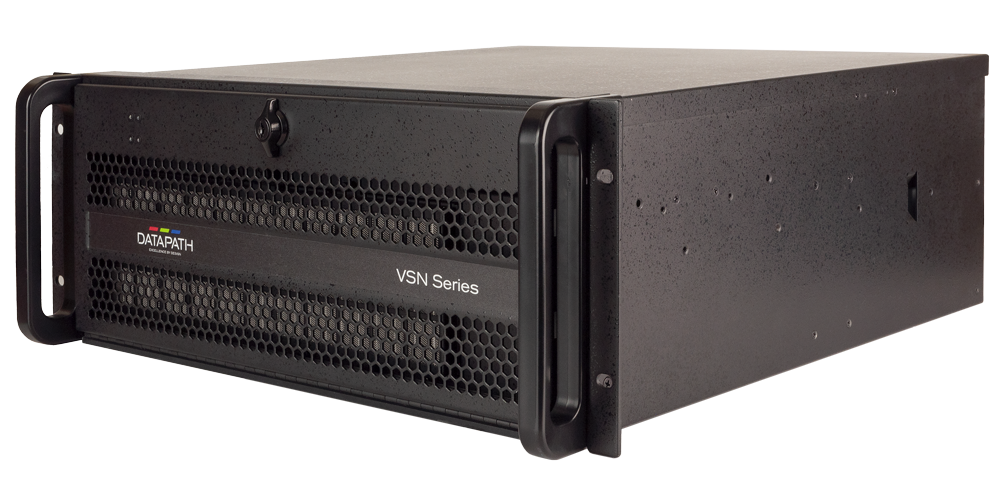

Datapath VSN V3

Scalable and ultra-secure video wall controller.

The Datapath VSN V3 processor system is our most powerful and efficient video wall controller to date.

The VSN V3 generation introduces the latest technology in power efficiency and system cooling, and chassis enhancements to improve airflow and simplify system maintenance.

КОНТАКТНАЯ ИНФОРМАЦИЯ

  • Готово тел. +375 (29) 627 38 12
  • Готово e-mail: info@ddrb.by

Описание

Mission-critical video wall controllers

Datapath VSN controllers are engineered from the ground up for maximum performance, reliability, and efficiency. They capture, process, and display content on video walls across a range of industries, from small corporate meeting rooms to large critical control rooms and prestige installations.

Installed with Intel processors and memory options, Datapath VSNs can be preconfigured with Datapath Image graphics, Vision capture, and SQX IP decode cards for your specific project requirements.

Power efficiency

The V3 generation introduces the latest technology in power efficiency and system cooling, and chassis enhancements to improve airflow and simplify system maintenance.

The VSN V3 includes support for 12th generation (Alder Lake) Intel Core i9 or Core i7 processors, with memory options available of up to 64GB (ECC and non ECC). USB 3.0 is also now included to support high transfer speeds and connectivity to the latest devices.

Optimized system cooling

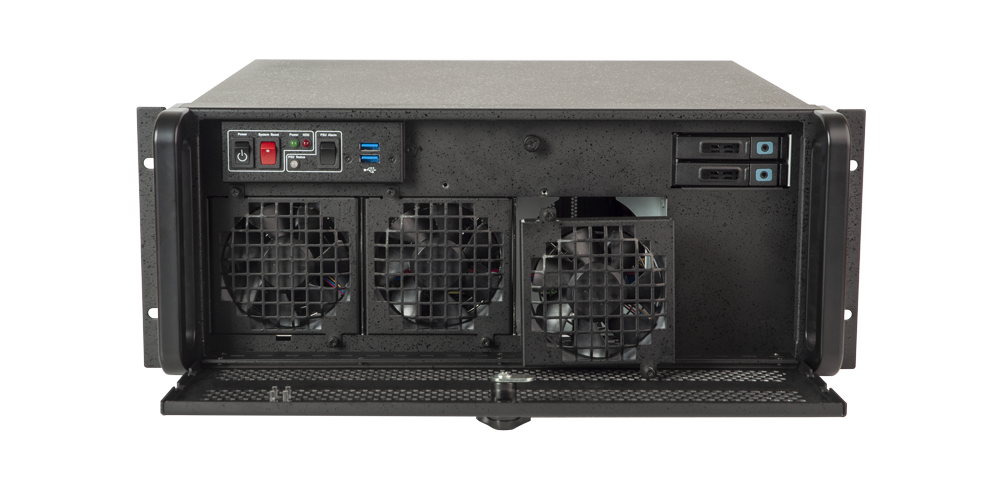

The chassis includes hot-swappable fans, enabling uninterrupted 24/7 use and maintenance in the most critical installations. It has been redesigned to further optimize airflow, improve heat management, and reduce noise. This new design, along with a new platinum rated redundant power supply, makes this the most efficient VSN yet.

Reliability

Datapath’s VSN V3 video wall controller has been designed for use in demanding control room environments. Each component has been rigorously tested to ensure high levels of performance and reliability. For added peace of mind, systems can be pre-installed with Wall Monitor software.

Wall Monitor is an application that warns operators if a system begins to function outside of normal parameters. Alarms can be set to indicate changes in voltage and temperature.

Compatibility

The Datapath VSN V3 wall controller is compatible with Windows 10 LTSC 21H2 operating system.
Extra Protection With Spares Kits

For additional security and peace of mind, our customers are invited to take advantage of Datapath’s spares kits. For a small premium, selected products can be protected by our spares kits. For more information please contact our sales team.

VSN V3 Wall Controller Specification

Motherboard Portwell ROBO8116G2AR
Processor Core i9

12th generation Intel® Core i9

Clock speed 5.10GHz. 30MB cache

Core i7

12th generation Intel® Core i7

Clock speed 4.90GHz. 25MB cache
Memory 32GB (Standard)

64GB (Upgrade)
Ethernet Dual 10Base-T 100Base-TX/1000BaseT
On-board Graphics DisplayPort, HDMI
Hot swappable SSD 2 x 240GB (RAID 1)
Upgrade option: 2 x 480GB SSD
Connectivity 4 x 3.0 USB
2x 2.0 USB
1 x USB-C

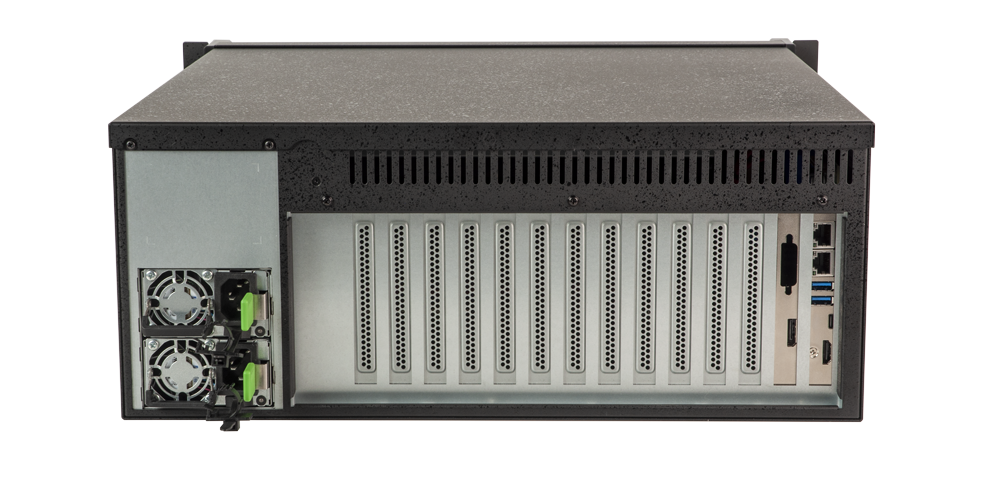

Backplane 3rd generation PCIe switched fabric with 11 slot x8 — 8GB/s uplink and downlink
Power RPSU 800W, 100-240V~, 50/60Hz
Operating Temperature 0°C to 35°C
Storage Temperature 20°C to 70°C
Relative Humidity 10% to 95% Non-Condensing
Operating altitude Up to 5,000m
Noise Between 52dB & 80dB3
dependent on system config &
ambient temp
Dimensions 507.6mm(l) x 177mm(h) x 482.6mm(w) with rack ears.
Weight 19 — 25kg (Shipped 30-33kg)
Compliance CE, UKCA, FCC
